ASTM A105 is one of the most commonly used carbon steel specifications for forged piping components such as flanges, fittings, valves, and similar parts. Known for its versatility, strength, and cost-effectiveness, A105 carbon steel is widely used in pressure systems with ambient- and high-temperature service.
Although A105 is typically described as a single steel grade, the specification actually covers a range of mechanical and chemical properties, depending on manufacturing method, heat treatment, and forging class. Understanding these sub-grades and conditions helps ensure proper material selection for pressure, temperature, and corrosion requirements.
What ASTM A105 Covers
ASTM A105 (or ASME SA105 for pressure vessel applications) defines carbon steel forged piping components operating under moderate to high temperature and pressure services
These forgings can be used for:
-

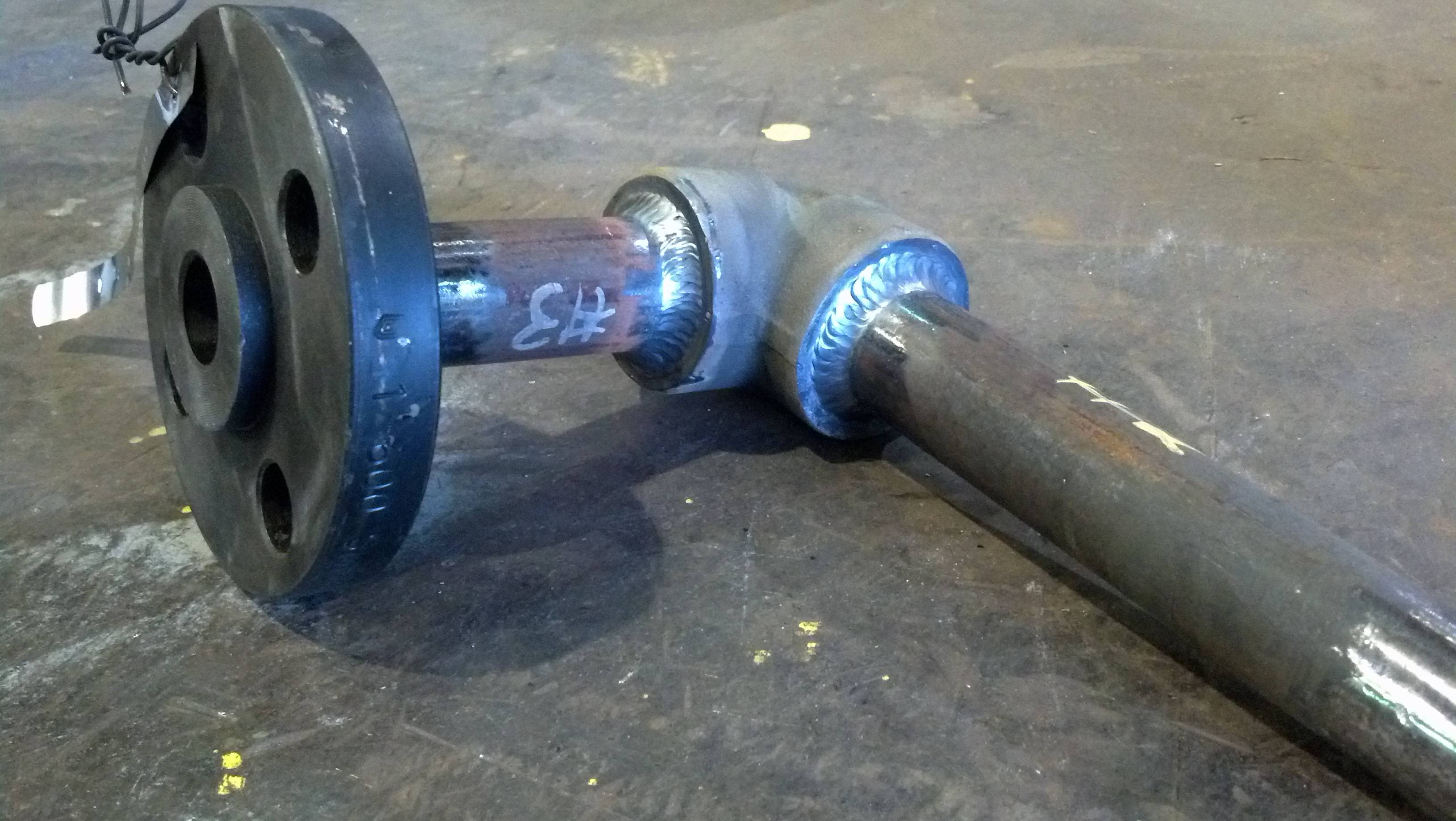

Flanges (weld neck, slip-on, blind, socket weld, etc.)
-
Fittings (elbows, tees, couplings, unions)
-
Valves and pressure-retaining parts
Material Composition
Typical chemical composition limits for A105 steel include:
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.35 max |
| Manganese (Mn) | 0.60–1.05 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.040 max |
| Silicon (Si) | 0.10–0.35 |
| Copper, Nickel, Chromium, Molybdenum, Vanadium | 0.40 max (each, residual) |
Mechanical Properties
| Property | Requirement |
|---|---|
| Tensile Strength | 485 MPa (70 ksi) min |
| Yield Strength | 250 MPa (36 ksi) min |
| Elongation | 22% min |
| Reduction of Area | 30% min |
| Hardness (Brinell) | 137–187 HBW |
The material may be supplied in forged, normalized, or quenched-and-tempered conditions depending on end use.
Sub-Grades and Classes
While ASTM A105 is a single specification, manufacturers may supply forgings under specific classes or conditions to meet varying service demands:
| Grade / Class | Description | Common Applications |
|---|---|---|
| A105N | Normalized condition (heat-treated for improved grain structure) | Higher pressure systems, improved toughness |
| A105 (As-Forged) | Standard forging without normalization | General service flanges and fittings |
| A105-QT | Quenched and tempered | High-stress, high-pressure components |
| A105 Modified | Customized alloying or treatment per project | Specialty forgings, OEM requirements |
The “N” designation (A105N) is particularly important — it indicates normalizing, which refines grain structure and improves uniformity and toughness for demanding service conditions.
Common Uses
A105 forgings are used across a wide range of industries:
-
Oil & gas pipeline and refinery systems
-
Petrochemical plants
-
Steam and high-pressure water systems
-
Power generation piping
-
General industrial manufacturing
Because of its machinability, weldability, and strength-to-cost ratio, ASTM A105 remains the industry standard for forged carbon steel piping components.
Conclusion
ASTM A105 steel provides a durable, economical, and reliable option for forged piping components in critical service. Understanding the sub-grades such as A105, A105N, and A105-QT ensures that each application receives the right combination of strength, toughness, and performance. Whether used in refinery flanges or high-pressure fittings, A105 continues to be the benchmark for carbon steel forging quality worldwide.
